Working with the Reactor

tip

Document models are the common design pattern that is used for all documents and files.
DocSync is a decentralized synchronization protocol that is storage agnostic.

Document Models are what is synced and DocSync is how document models are synced.
But who is doing the syncing?

We call these participants Reactors.

Powerhouse Reactors

What is a Reactor? Powerhouse Reactors are the nodes in the network that store documents, resolve conflicts and rerun operations to verify document event histories. Reactors can be configured for local storage, centralized cloud storage or on a decentralized storage network. A Reactor is essentially a storage node used in Powerhouse's framework to handle documents and traditional files. It supports multiple storage solutions, including:

Local Storage: For offline or on-device access.
Cloud Storage: For centralized, scalable data management.
Decentralized Storage: Such as Ceramic or IPFS, enabling distributed and blockchain-based storage options.

Core Functions of Reactors

Data Synchronization: Reactors ensure that all data, whether local or distributed, remains up-to-date and consistent across the system.
Modular Storage Adapters: They support integration with different storage backends depending on organizational needs.
Collaboration Support: Reactors facilitate document sharing and peer-to-peer collaboration across contributors within the network.

tip

The DocSync protocol sends updates from one reactor to another - smashing document operations into one another - to ensure all data is synced.

A reactor is responsible for storing data and resolving merge conflicts.

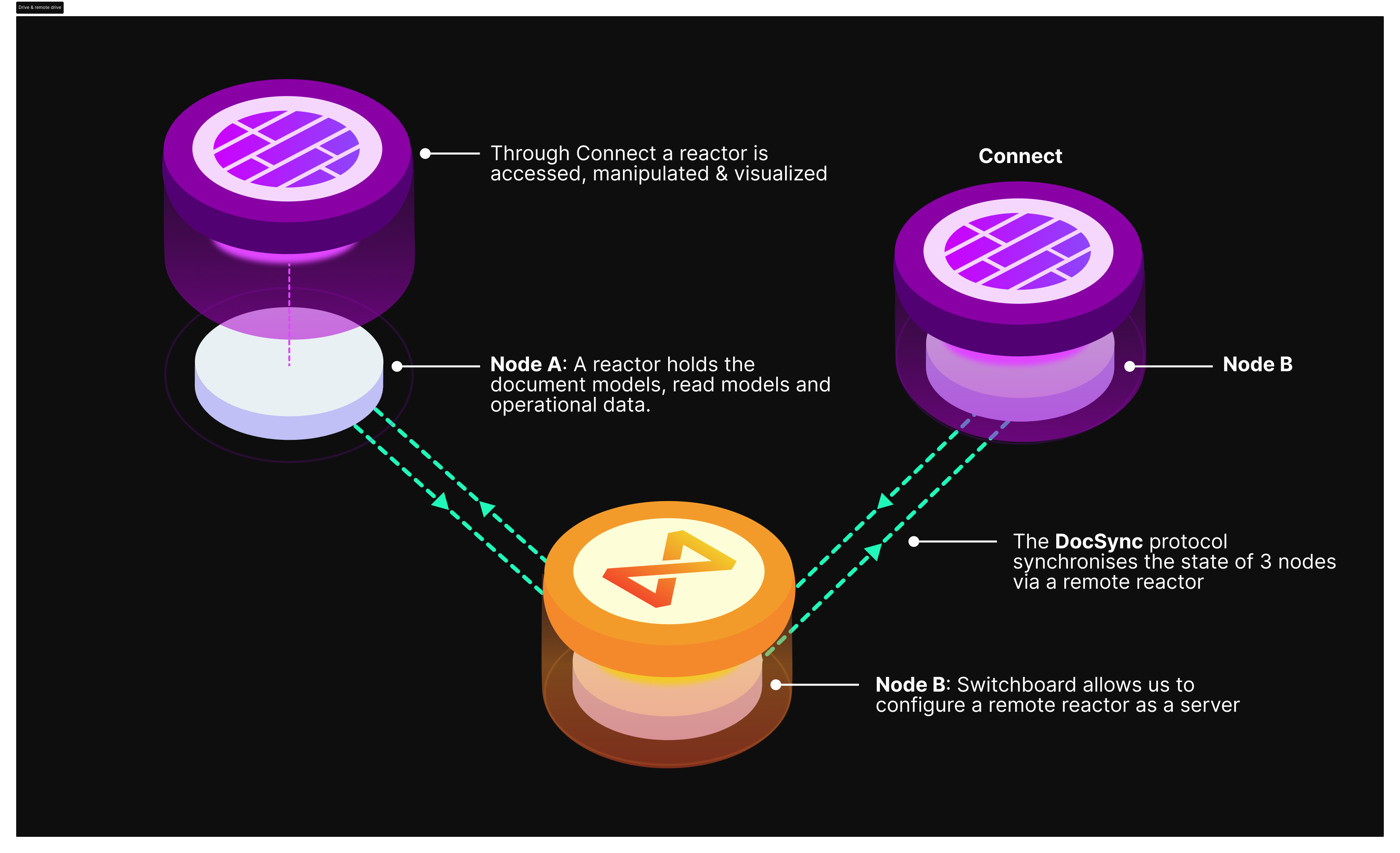

Editing data and submitting new operations must be done through Powerhouse's native applications (Connect, Switchboard, Fusion). Each instance of these applications contains a Reactor that is responsible for storing data and syncing data through DocSync. In other words, Powerhouse applications are how Reactors can be accessed, manipulated, steered, visualized and modified. A local Connect desktop application's reactor can therefore sync with the Reactor of a remote drive (e.g. Switchboard instance).

Why Are Reactors Important?

They are key to ensuring the scalability and resilience of decentralized operations. By acting as the backbone for document models in the Powerhouse framework, they enable seamless version control and event-driven updates. Reactors provide the foundation for advanced features like real-time collaboration, history tracking, and decentralized audits. This modular, flexible infrastructure enables organizations to build efficient and robust decentralized systems, tailored for modern network organizations

The ReactorClient API

The IReactorClient is the primary interface for interacting with a reactor programmatically. It wraps lower-level APIs to provide a simpler, Promise-based interface for document operations.

import type { IReactorClient } from "@powerhousedao/reactor-browser";

:::info Import paths @powerhousedao/reactor-browser re-exports all reactor types for convenience in browser environments (editors, drive-apps, subgraphs). If you are working outside the browser — for example in a standalone Node.js script, CLI tool, or server-side processor — import directly from @powerhousedao/reactor. :::

Reading documents

Method	Description
`get(identifier, view?)`	Retrieve a document by id or slug
`getChildren(parentIdentifier, view?, paging?)`	List child documents
`getParents(childIdentifier, view?, paging?)`	List parent documents
`find(search, view?, paging?)`	Search documents by type, parentId, ids, or slugs
`getOperations(documentIdentifier, view?, filter?, paging?)`	Retrieve operations for a document
`getDocumentModelModules(namespace?, paging?)`	List registered document model modules
`getDocumentModelModule(documentType)`	Get a specific document model module

The optional ViewFilter lets you target a specific branch, set of scopes, or revision:

type ViewFilter = {
  branch?: string;
  scopes?: string[];
  revision?: number;
};

The SearchFilter lets you narrow results:

type SearchFilter = {
  type?: string;
  parentId?: string;
  ids?: string[];
  slugs?: string[];
};

All list methods support pagination via PagingOptions ({ cursor, limit }) and return PagedResults<T> with a next() helper for fetching the next page.

Writing documents

Method	Description
`create(document, parentIdentifier?)`	Create a document from a full `PHDocument` object
`createEmpty(documentModelType, options?)`	Create an empty document of a given type
`createDocumentInDrive(driveId, document, parentFolder?)`	Create a document inside a drive in a single batched operation
`execute(documentIdentifier, branch, actions)`	Apply actions and wait for completion
`executeAsync(documentIdentifier, branch, actions)`	Submit actions and return immediately with a `JobInfo`
`rename(documentIdentifier, name, branch?)`	Rename a document
`addChildren(parentIdentifier, documentIdentifiers, branch?)`	Add documents as children
`removeChildren(parentIdentifier, documentIdentifiers, branch?)`	Remove child relationships
`moveChildren(sourceParent, targetParent, documentIdentifiers, branch?)`	Move children between parents
`deleteDocument(identifier, propagate?)`	Delete a document (`PropagationMode.Cascade` deletes children too)
`deleteDocuments(identifiers, propagate?)`	Bulk delete

Subscribing to changes

const unsubscribe = reactorClient.subscribe(
  { type: "powerhouse/todo-list" }, // SearchFilter
  (event) => {
    // event.type is one of: Created, Deleted, Updated,
    //   ParentAdded, ParentRemoved, ChildAdded, ChildRemoved
    console.log(event.type, event.documents);
  },
);

Job tracking

Write operations return JobInfo objects. A job tracks the lifecycle of a set of actions as they move through the reactor.

const job = await reactorClient.executeAsync(docId, "main", actions);
const completed = await reactorClient.waitForJob(job.id);

You can also poll with getJobStatus(jobId).

For the full API reference, see IReactorClient API Reference.

Job lifecycle

Every mutation in the reactor is processed as a job. Jobs move through these statuses:

PENDING → RUNNING → WRITE_READY → READ_READY
                  ↘ FAILED

Status	Meaning
`PENDING`	Job is queued but not yet started
`RUNNING`	Job is currently being executed by the reducer
`WRITE_READY`	Operations have been written to the operation store
`READ_READY`	All read models have finished processing — document is fully readable
`FAILED`	Job encountered an unrecoverable error

Only READ_READY and FAILED are terminal statuses. The execute() method on IReactorClient waits until READ_READY before resolving; executeAsync() returns immediately with a JobInfo at PENDING.

Reactor event system

The reactor uses an internal event bus to coordinate between subsystems. Events are grouped into three categories:

Core job events (`ReactorEventTypes`)

Event	Numeric ID	When it fires
`JOB_PENDING`	10001	Job is registered and waiting to execute
`JOB_RUNNING`	10002	Job starts executing
`JOB_WRITE_READY`	10003	Operations are written to the operation store
`JOB_READ_READY`	10004	All read models have finished processing
`JOB_FAILED`	10005	Job failed with an unrecoverable error

Sync events (`SyncEventTypes`)

Event	Numeric ID	When it fires
`SYNC_PENDING`	20001	Sync operations are queued in outboxes
`SYNC_SUCCEEDED`	20002	All sync operations for a job succeed
`SYNC_FAILED`	20003	At least one sync operation failed
`DEAD_LETTER_ADDED`	20004	A sync operation is moved to dead letter storage
`CONNECTION_STATE_CHANGED`	20005	Remote connection state changes

Queue events (`QueueEventTypes`)

Event	Numeric ID	When it fires
`JOB_AVAILABLE`	10000	Queue has work available for processing

Configuring your reactor

In addition to the choice of storage, Reactors also have other configurations.

The operational data and read models associated with the document models inside a reactor allow to query the gathered data inside a document model or quickly visualize the crucial insights at a glance.
Processors are components that receive operations and perform side effects — analytics tracking, relational database indexing, webhooks, and more. You register processor factories with the reactor, and it automatically creates processor instances for each drive.

The processor pipeline works as follows:

Operations are written — a job completes its write phase, persisting operations to storage
Pre-ready read models update — built-in read models like DocumentView and DocumentIndexer update their state
JOB_READ_READY event fires — signaling that the document is fully readable
Post-ready read models update — the ProcessorManager routes matching operations to user-defined processors via onOperations()

For a step-by-step guide to building processors, see Building a Processor.

Ordering guarantees

Global ordinal: Every operation gets a monotonically increasing ordinal in its OperationContext, enabling cross-document ordering
Within a processor: Operations arrive sorted by ordinal (chronological order)
Between processors: Processors for the same drive execute in parallel — there is no inter-processor ordering guarantee
Per-document serialization: The queue serializes execution per document, even across scopes and branches
Catch-up on restart: Processors automatically replay missed operations after a restart (each processor's progress is tracked via the ProcessorCursor table)

If you are working with the Reactor directly or need additional information regarding its architecture you can visit: https://github.com/powerhouse-inc/powerhouse/blob/main/packages/reactor/docs/ARCHITECTURE.md
