Create a new chatroom project

Tutorial Repository

📦 Reference Code: chatroom-demo

This tutorial has a complete reference implementation available. You can:

  • View the complete code for each step
  • Clone and compare your implementation
  • Use git diff to compare your code with the reference
📖 How to use this tutorial

This tutorial is designed for you to build your own project from scratch while having access to reference code.

Setup: Create your project and connect to tutorial repo​

  1. Create your project following the tutorial:

    mkdir ph-projects
    cd ph-projects
    ph init
    # When prompted, enter project name: ChatRoom
    cd ChatRoom

  2. Add the tutorial repository as a remote to access reference code:

    git remote add tutorial https://github.com/powerhouse-inc/chatroom-demo.git
    git fetch tutorial --prune

  3. Create your own branch to keep your work organized:

    git checkout -b my-chatroom-project

Now you have access to the complete reference implementation while working on your own code!

Compare your work with the reference​

At any point, compare what you've built with the reference:

# Compare your current work with the reference
git diff tutorial/main

# Compare specific files
git diff tutorial/main -- package.json

If you get stuck​

Reset your code to match the reference:

# Reset to reference (WARNING: loses your changes)
git reset --hard tutorial/main

Overview​

This tutorial guides you through creating a ChatRoom application using Powerhouse.
A Powerhouse project primarily consists of a document model and its editor. The ChatRoom demonstrates real-time collaboration features where users can post messages and react with emojis.

Prerequisites​

  • Powerhouse CLI installed: pnpm install -g ph-cmd or npm install -g ph-cmd
  • node.js 22 and a package manager (pnpm or npm) installed
  • Visual Studio Code (or your preferred IDE)
  • Terminal/Command Prompt access

If you need help with installing the prerequisites you can visit our page prerequisites

Quick start​

Create a new Powerhouse project with a single command:

ph init

Before you begin​

  1. Open your terminal (either your system terminal or IDE's integrated terminal)

  2. Optionally, create a folder first to keep your Powerhouse projects:

    mkdir ph-projects
    cd ph-projects

  3. Ensure you're in the correct directory before running the ph init command.
    In the terminal, you will be asked to enter the project name. Fill in the project name and press Enter.

    you@yourmachine:~/ph-projects % ph init

    ? What is the project name? ‣ ChatRoom

Once the project is created, you will see the following output:

Initialized empty Git repository in /Users/you/ph-projects/ChatRoom/.git/
The installation is done!

Navigate to the newly created project directory:

cd ChatRoom

Develop your document model in Connect​

Once in the project directory, run the ph connect command to start a local instance of the Connect application. This allows you to start your document model specification document.

ph connect

The Connect application will start and you will see the following output:

  ➜  Local:   http://localhost:3000/
  ➜  Network: http://192.168.5.110:3000/
  ➜  press h + enter to show help

A new browser window will open and you will see the Connect application. If it doesn't open automatically, you can open it manually by navigating to http://localhost:3000/ in your browser.

tip

If your local drive is not present, navigate to Settings in the bottom left corner. Settings > Danger Zone > Clear Storage. Clear the storage of your localhost application as it might have an old session cached.

  1. Move into your local drive.

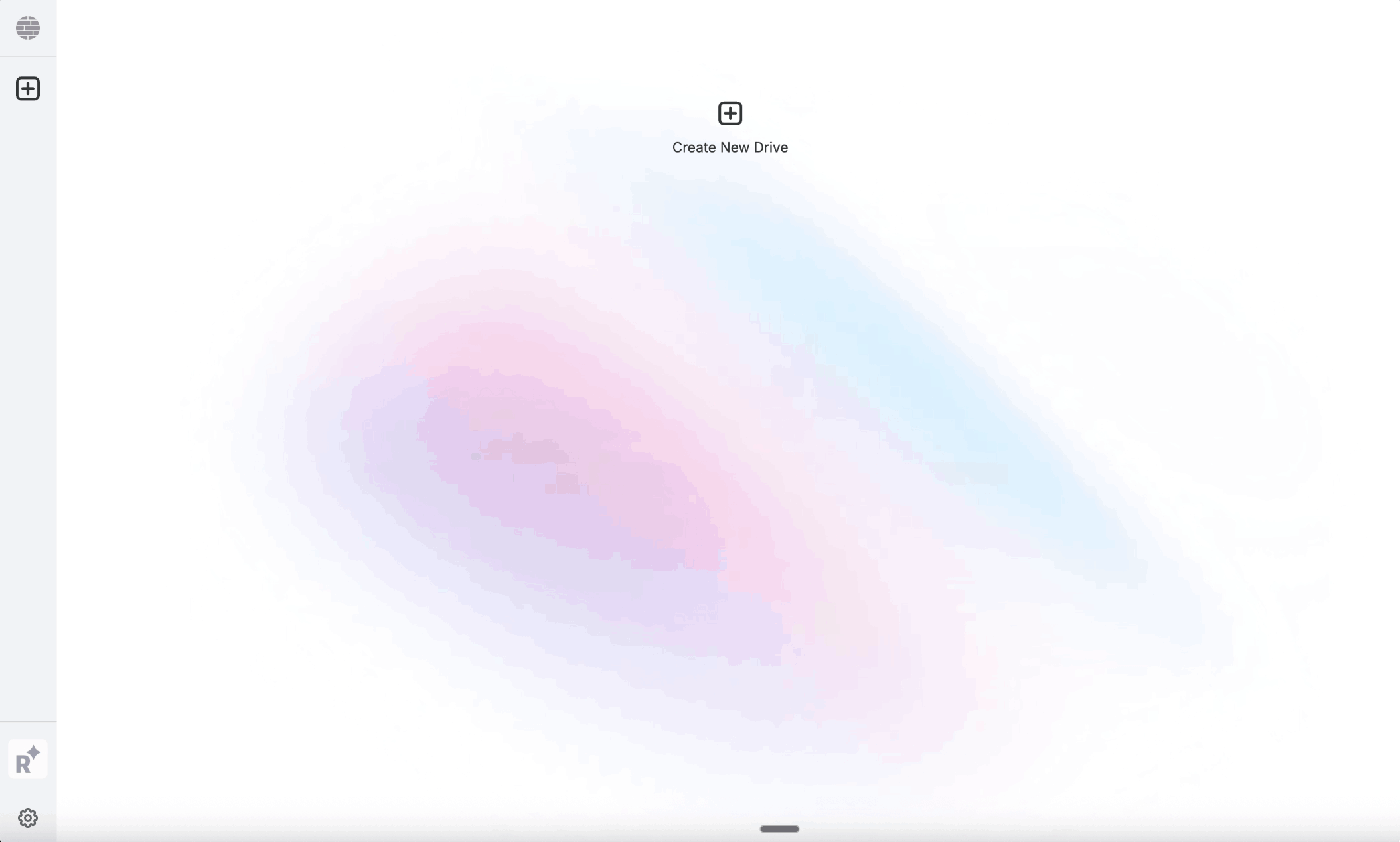

    Create a new document model by clicking the DocumentModel button, found in the 'New Document' section at the bottom of the page. Name your document ChatRoom (PascalCase, no spaces or hyphens).

    Pay close attention to capitalization, as it influences code generation.

Create New Document Model

If you've followed the steps correctly, you'll have an empty ChatRoom document where you can define the 'Document Specifications'.

Verify your setup​

At this point, your project structure should include:

  • Empty document-models/, editors/, processors/, and subgraphs/ directories
  • Configuration files: powerhouse.config.json, powerhouse.manifest.json
  • Package management files: package.json, pnpm-lock.yaml
  • Build configuration: tsconfig.json, vite.config.ts, vitest.config.ts

Up next​

In the next tutorial, you will learn how to design your document model and export it to be later used in your Powerhouse project.
